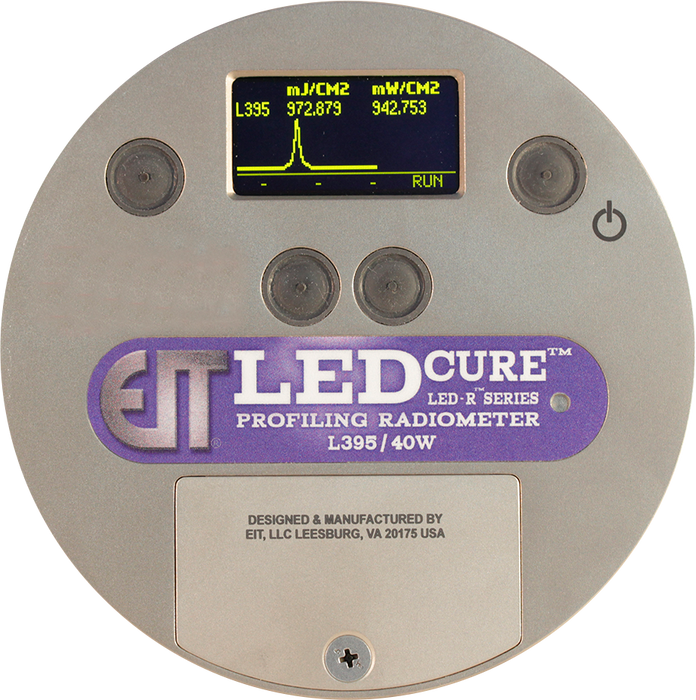

The L-395 LEDCure® is a highly portable and accurate radiometer designed specifically to measure the UV generated by industrial UV LED systems. It provides absolute energy measurements with accuracy and repeatability comparable to larger, cabled, metrology-based instruments that are much more expensive. The LEDCure is easy to use, compact and affordable.

IDS/DPS is an authorized distributor of the EIT2.0 L-395 LEDCure® Power Puck®.

LEDCure® L395 Power Puck®

• Single channel UV LED radiometer with OLED display

• Unit measures and displays UV peak irradiance (W/cm2) & total energy (J/cm2) in the EIT L-395 bandwidth (370-422 nm)

• L-395 instrument response features EIT’s patented Total Measured Optics Response in which ALL optics in the instrument stack are included in the instrument response

• Dynamic Range is 40 W/cm2

o The suggested operating range for moving applications is 0.2-40 W/cm2

o The suggested operating range for static applications is 0.1-40 W/cm2

• User selectable display modes (Graph/Data, Reference or Toggle), user changeable batteries

• User adjustable data sample rate of 25 Hz, 128 Hz or 2048 Hz
